327 Series) 1-1/2”-stainless-steel-manifolds, 2-12 loops

Home » Radiant » Manifolds » 327 Series) 1-1/2”-stainless-steel-manifolds, 2-12 loops

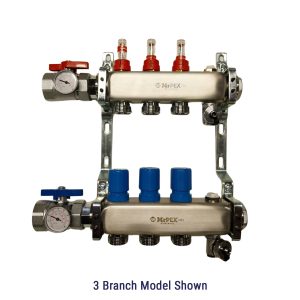

MrPEX® 1 1/2 in. Stainless Steel Manifold is made from high quality stainless steel, and is offered in 2 through 12 loop configurations. The manifold comes mounted on brackets and it is equipped with full port ball valves with thermometers, manual air vents and fill/drain valves. The Cv is 1.39 per branch. Branch connections are EK 25.
The SUPPLY (upper) manifold is fitted with balancing flowmeters with readable range of 0 to 2 GPM that allow flow adjustment of each individual loop. The flow meters have a brass body and the sight glass is made from temperature and impact resistant plastic, all components are antifreeze resistant up to a 50% mix.
