326 Series) 1-1/2”-stainless-steel-manifolds, 3-13 loops

Home » Radiant » Manifolds » 326 Series) 1-1/2”-stainless-steel-manifolds, 3-13 loops

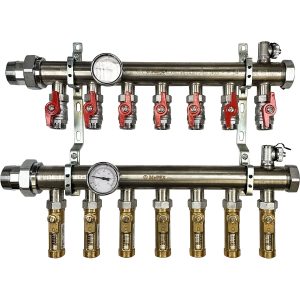

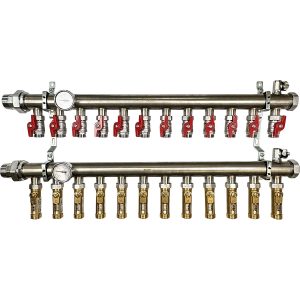

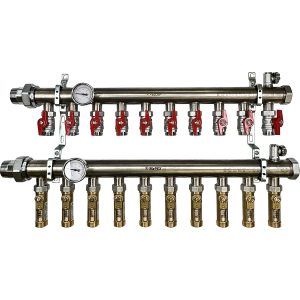

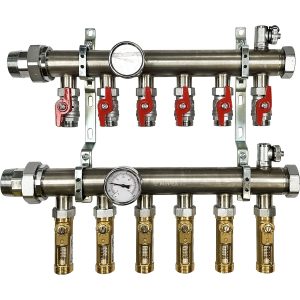

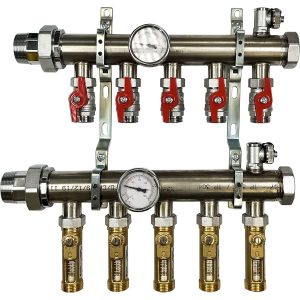

MrPEX® 1 1/2 in. Stainless Steel Manifolds are made from high-quality Type 304 stainless steel and comes fully assembled in 3-13 loop configurations. The manifold body supply and return inlet comes with 1 1/2 in. NPT flat gasket union to aid in installation. End cap, vent, drain/purge valve come factory mounted on the body. The branches come with G 1_ x EK 25 flat gasket on/off valves on the supply, and G 1_ x EK 25 flat gasket inline visual flowmeter 2-8 GPM with built-in balancing valves on the return. Use any of the MrPEX® EK 25 fitting assemblies (PEX to EK 25 or PEX-AL-PEX to EK 25) to connect tubing to the manifold.
