328 Series) 1-1/2”-stainless-steel-manifolds, 2-12 loops

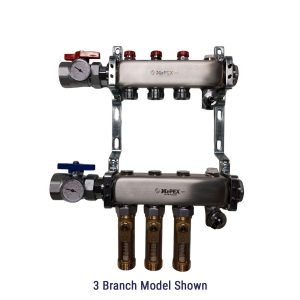

MrPEX® 1 1/2 in. High Flow Stainless Steel Manifold is made from high quality stainless steel, and is offered in 2 through 12 loop configurations.
The manifold comes mounted on brackets and it is equipped with full port ball valves with thermometers, manual air vents and fill/drain valves. The CV value is 5.35 per branch. Branch connections are EK 25.
The SUPPLY manifold loop connections come with a balancing Lockshield x EK 25 allowing isolation of each loop.
The Return manifold loop connections come with a G 1”flat gasket x EK 25 inline visual balancing flowmeters with a range from 0 to 4 GPM allowing flow adjustment of each individual loop.
