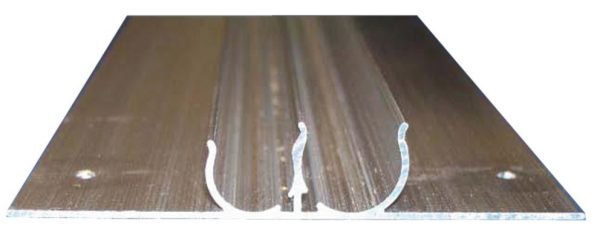

DuoTrack Extruded Aluminum Heat Transfer Plates for 3/8 in. or 1/2 in. PEX - 48 in. x 3.75 in.

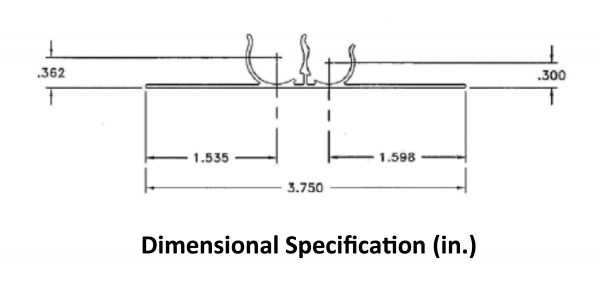

DuoTrack Extruded Aluminum Heat Transfer Plates for 3/8 in. or 1/2 in. PEX - 48 in. x 3.75 in. - Image 2

DuoTrack Extruded Aluminum Heat Transfer Plates for 3/8 in. or 1/2 in. PEX – 48 in. x 3.75 in.

DuoTrack Benefits:

  • 48″ long x 3.75″ wide — easy handling
  • 3/8″ or 1/2″ tubing in one plate
  • Extruded Aluminum — Superior heat transfer
  • Pre-punched holes — Easy installation
  • Low thermal mass – Quick output response
SKU: 6110733 Category:

Additional information

Nominal Size

48 in. x 3.75 in.
Unit Type

Box of 20
