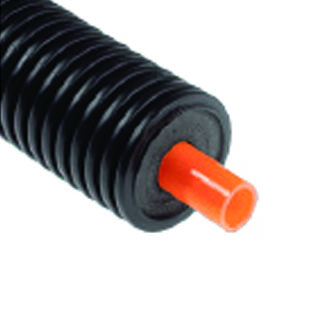

Pre-Insulated Single PEX-a Barrier Tubing 200mm Outer Jacket

Pre-Insulated Single PEX-a Barrier Tubing 200mm Outer Jacket

Full coils are 328 feet . Shorter coil lengths are available with a $50.00 net cut fee. All freight on Pre-Insulated PEX Products will be added to invoice. No FFA allowance provided by MrPEX®.

SKU: 1510090 Category:

Additional information

Nominal Size

90mm (3 in.) PEX Single
Unit Type

FT
Single or Double

Single
Jacket OD

7.9"
Pipe OD

3.5"
Wall Thickness

0.32"
Pipe ID

2.90"
Bending Radius

43.3"
Water Content Gal/100ft

34.27
R-Value BTU/HR/FT/degrees F

5.227

Downloads

Description

Pre-Insulated PEX-A Pipes

Pre-Insulated PEX-A pipes come in single pipe and double pipe configurations. Use brass transition to get to NPT.

  • Backed by our 10 year warranty
  • Available in sizes 32mm thru 110mm

Materials

  • Service Pipe: Cross-linked Polyethylene (Pex-a), manufactured per the Engle method complete with an EVOH oxygen barrier to conform to DIN 4726. Surface roughness value of 0.02 mil. NSF certified SDR-11
  • Insulation: Consists of microcellular, cross-linked polyethylene closed cell foam, CFC free. Service temperature of 1/2″ thru 1″ -112°F to 230°F. Water absorption after 28 days DIN 53428 &lt 1.04% of volume.
  • Jacket: Corrugated closed chamber seamless high density polyethylene (HDPE) UV protected
  • Approval: NSF 14 and NSF 61
  • Operating Limits: Working Pressure are 220 psi @ 68°F, 88 psi @ 203°F and 132 psi for gas
Download Pre-Insulated Spec Sheet
Download Pressure Drop Chart
