Description

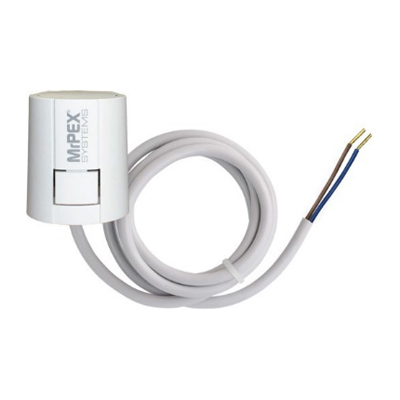

Valve Actuator for Valved Manifolds
| Specifications | |
|---|---|
| Part Numbers | 5120700 w/ End Switch 5120701 w/o End Switch |
| Operating Voltage | 24V A/C |
| Power Consumption | 1 W (1 VA Draw) |
| Switch-on Current | Max. 250 mA |
| Micro Switch | 24V / 0.5 A |
| Protection | IP54 |
| Storage Temperature | -13 degrees F to 149 degrees F |
| Humidity | Max. 80% |
| Wires, 5120700 | Yellow = Power Red = End Switch |
NOTE: No adapter is needed when used with MrPEX 1 1/4″ Stainless Steel Manifolds. When used with MrPEX 1 1/4″ & 1 1/2″ Brass Manifiolds, adapter ring 5700010 (VA-10), when used with MrPEX Composite Manifold, use adapter 5700090 (VA-90 WE) adapters come in kit for this item. All other adapters need to be purchased separately. Please see spare parts section for other adapter types.
