HeatPly - Radiant Wood Track - Turn-Around Panel - 6 in. O.C. - 12 in. x 48 in.

HeatPly – Radiant Wood Track – Turn-Around Panel – 6 in. O.C. – 12 in. x 48 in.

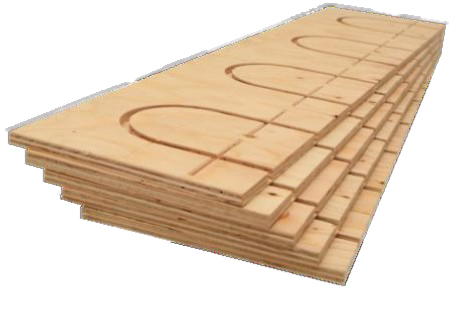

MrPEX® Radiant Wood Track is a low profile radiant heat underlayment sys-tem perfect for retrofit or new construction in either residential or commer-cial applications. It works with any hydronic heating systems, which is one of the most popular and efficient methods of generating heat. With the low water temperature requirements associated with radiant floor heating, it also lends itself perfectly to many other low temp heat sources such as ground source heat pumps or High Efficiency Boilers. The MrPEX® Radiant Wood Track comes in three standard panels, Run Panel, Turn-Around Panel, and Manifold Panel. Each panel is 12″ x 48″and are marked for easy and optimal cutting to fit any layout.

SKU: 6115029 Category:

Additional information

Nominal Size

For 3/8 in. PEX Tubing
Unit Type

Box of 10

Downloads

Description

Specifications
Panel Thickness 5/8″
Panel Dimensions 12″ x 48″
Panel Weight 6″67 lbs.
Plywood Type CCX-Formaldehyde Free 5 ply Exterior Grade
Tubing Size 3/8″ Tubing
Tube Spacing 6″ on Center
Heat Transfer Convection / Conduction
